24 ~ 72V DC type 1t recta furca statera gravis electrica forklift motricium
depictio producti

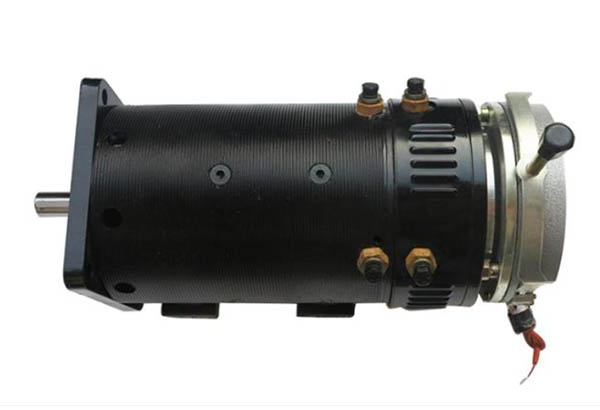

Structura motoris forklift electrica simplicior est quam combustio internae forklift.Pictura ostendit 1DC type 1t libra recta furca grave electricum forklift motoris.
Fundamentalis constructio motoris forklift electrici in his componentibus consistit:
1.Vis unitatis: altilium sarcina.Vexillationes voltages sunt 24, 30, 48, et 72V.
2.Artus: frame forklift, ferro et chalybe conflata.Omnes fere partes forklift in artus ascenduntur.Variis oneribus in operatione subicitur, ut vires et rigiditatem habere debeat.
3. Transmissio: Potestas motoris ad rotam forklift incessus transmittitur.
4. Systema gubernandi: moderari directionem gubernationis forklift.
5. Ratio confregit: fac forklift coegi tardus et cessant.
6. Motor systema electricum: Systema electricum motorem per varias partes moderatur ad initium, finem, reversionem et celeritatem forklift ordinandam, et ad oleum sentinam pressionis motoris vel hydraulicae.

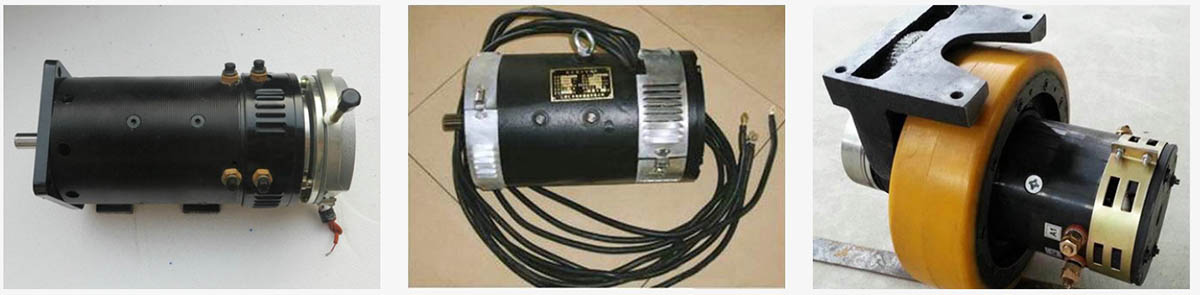

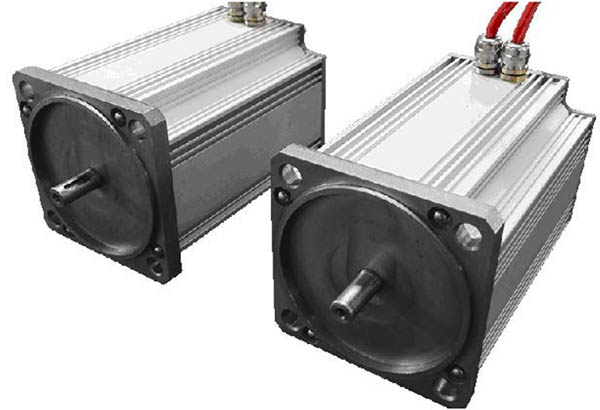

XINDA DC Motor Catalog
| XINDADC MOTOR CATALOGUS | ||
| Rated potestas | Item No. | Product photo |
|
| Electric Forklift vehiculum Motor |  |
|
| DC Traction Motor Electric | |
| 7KW | DC Traction Electric Motor Model 242ZDC 242ZD706H15 |
|
| 5KW | DC Traction Electric Motor Model 192ZDC 192ZD525H9 |
|
| 4KW | > > > > Traction > > > > > > > > |
|
|
| DC MOTOR pro Vehiculum Electric |
|
|
| Electric Forklift Motor Electric |
|
|
| Electric Forklift Motor Electric |  |
| XINDA DC Motor Series Specification Sheet | ||||||||
| Rated Power (KW) | 3 | 4 | 4.5 | 5 | 6 | 7 | 7.5 | 10 |
| Pugna intentione (VDC) | 48/60/72 | 72 | 96/144 | |||||
| Multiples ONERO | 2.5 | |||||||
| Rated Current (A) | 73/58.4/48.7 | 96.8/77.5/64.5 | 109/87.2/72.7 | 118/94.7/78.9 | 138.9/111/92.5 | 108 | 116 | 116/77 |
| Rated Torque (NM) | 10.2 | 13.6 | 15.3 | 17 | 20.5 | 23.9 | 25.6 | 34 |
| Rated Speed (RPM) | 2800 | |||||||
| Celeritate apicem (RPM) | 4500 | |||||||
| Systema opus | S2:60min | |||||||
| Nulla Level | H | |||||||
| Refrigerationem Methodo | naturalis refrigerationem / aeris refrigerationem | |||||||
| Effectus (C% PONDUS) | 85 | 86 | 86 | 88 | 88 | 88 | 90 | 90 |
| Praesidium Level | IP23 (IP44) | |||||||
| Applicationem | low-celeritate vector / vehiculum logisticum / vehiculum golf / sightseeing vehiculum / vigilum van / truck / acervus vehiculum etc. | |||||||
